Belden百通电缆CGB4

市场价：￥0元/个

优惠价：￥0元/个

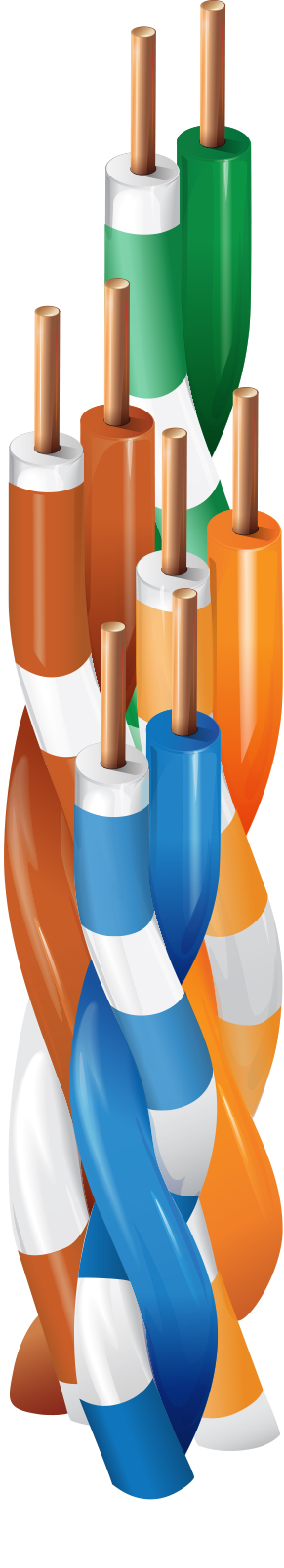

Category 6 Cross Connect Cable, 4 Pair, U/UTP, CMR

Belden百通电缆CGB4

Belden百通电缆CGB4

CGB4

Category 6 Cross Connect Cable, 4 Pair, U/UTP, CMR

XCGB4

Suitable Applications	Cross-Connect, Interconnect

Size	Stranding	Material	No. of Pairs
23 AWG	Solid	BC - Bare Copper	4

Material	Color Code
PO+FEP - Polyolefin + Fluorinated Ethylene Propylene	White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Table Notes	Overall Nominal Diameter: 0.185 in

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. SRL (Structural Return Loss) [dB]	Max./Min. Fitted Impedance [Ohm]
0.772	1.8 dB/100m		102 ± 15
1	2.0 dB/100m	20	100 ± 15
4	3.7 dB/100m	23	100 ± 15
8	5.2 dB/100m	24.5	100 ± 15
10	5.8 dB/100m	25	100 ± 15
16	7.4 dB/100m	25	100 ± 15
20	8.3 dB/100m	25	100 ± 15
25	9.3 dB/100m	24.3	100 ± 15
31.25	10.4 dB/100m	23.6	100 ± 15
62.5	15.0 dB/100m	21.5	100 ± 15
100	19.3 dB/100m	20.8	100 ± 15
155	24.5 dB/100m	19.5	100 ± 15
200	28.3 dB/100m	18.7	100 ± 15
250	32.1 dB/100m	18	100 ± 15
300	35.6 dB/100m	17.5	100 ± 15

UL Temperature
60°C

Stationary Min.	Installation Min.
1 in (25 mm)	1 in (25 mm)

Max. Pull Tension	40 lbs (18 kg)
Bulk Cable Weight	18 lbs/1000ft

Flammability / Reaction to Fire	UL 1685 (UL Loading)
CPR Compliance	CPR UKCA Class: Eca
NEC / UL Compliance	Cross-Connect
Data Category	Category 6
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	Third party verified to ANSI/TIA-568-C.2, Category 6

Update and Revision	Revision Number: 0.379 Revision Date: 01-20-2023
