Belden百通电缆DB6PL2-25

市场价：￥0元/个

优惠价：￥0元/个

Belden百通电缆DB6PL2-25

Belden百通电缆DB6PL2-25

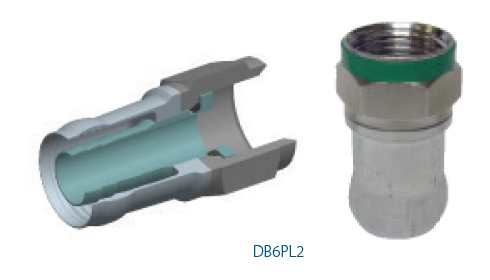

DB6PL2-25

Double Bubble RG-6 Plenum "F" Coax Compression Connector

DB6PL2-25

Double Bubble RG6 "F" Plenum connector, fits most plenum RG6 coaxial cables. Compression design that molds the metal completely around the cable. 25 per Pack

Material
Nickel plated Brass

Nominal Characteristic Impedance
75 Ohm

Frequency [MHz]
DC-1 GHz 31 dB Return Loss 1.05 VSWR
DC-2 GHz 26 dB Return Loss 1.09 VSWR
DC-3 GHz 21 dB Return Loss 1.18 VSWR

Footprint/Type	Coax
Connector Interface Type	F
Gender	Male - plug
Connector Series Name	Double Bubble
Locking	No
Tool Compatibility	CPLCRBC-BR (compression), PS59/6/RGB (strip)
Termination Type	Compression

Cable Center Conductor Diameter Limits	.0399 - .0418 inch
Cable Dielectric Diameter Limits	.165 - .172 inch
Cable Outer Jacket Diameter Limits	.220 - .250 inch

RG Type	6
Series Type	6

EU CE Mark	Yes

Suitability - Indoor	Yes
